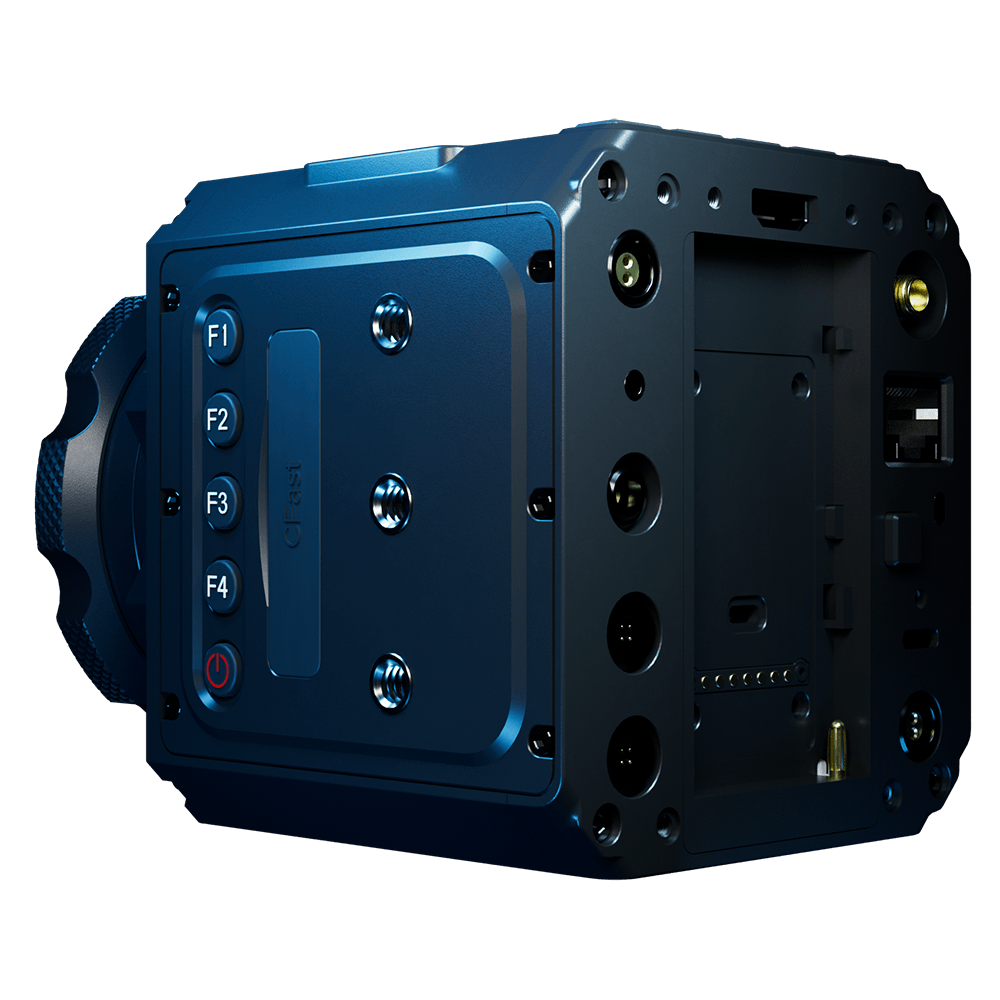

Z CAM E2-S6

Sensor Type

• Super 35mm CMOS Sensor

Sensor Size

• 23.4 x 15.67 mm

Effective Pixels

• 26M

Dynamic Range

• 14 Stops

Lens Mount

• EF, PL, M, Sony E & M Mount

Microphone

• Built-in Stereo Microphone

Resolution & Max Frame Rate

• 6244x4168 @30fps max (Open Gate)
• 6144x3240 @48fps max (6K DCI)
• 6144x2592 @60fps max (6K 2.4:1)
• 5760x3240 @48fps max (6K UHD)
• 5552x4164 @30fps max (5K 4:3)
• 4992x4160 @30fps max (5K 6:5)
• 4096x2160 @30fps max (4K DCI Low Noise) *
• 4096x2160 @75fps max (4K DCI) *
• 4096x1728 @100fps max (4K 2.4:1)
• 3840x2160 @30fps max (4K UHD Low Noise) *
• 3840x2160 @75fps max (4K UHD) *
• 1920x1080 @120fps max (FHD)

  * supersampling / cropping selectable, 4K supersampling is supported at the same frame rates as 6K DCI resolution mode

Video Encoder

• ZRAW / ProRes 422HQ / ProRes 422 / H.265 main 10 profile / H.264 high profile**

  * up to 4K @30fps

Bit Rate

• 300 Mbps max for H.265 & H.264 / 1.2 Gbps for ZRAW

Colour Bit-depth

• 12-bit ProRes Raw / 12-bit ZRAW / 10-bit 4:2:0 (H.265) /8-bit 4:2:0 (H.264)

Audio Format

• 24-bit 48 kHz

Audio Encoder

• AAC / PCM (for MOV only)

File Format

• MOV / MP4

Record Mode

• Video / Time Lapse Video

ISO

• Auto, Manual (400 ~ 125000), Dual Native ISO: 400 / 1250

Shutter

• Shutter Speed: Auto, Manual (1”~ 1/8000”) or Shutter Angle: Auto, Manual (1° ~ 360°)

White Balance

• Auto, Preset, Manual (2300K ~ 7500K)

Focus Mode

• MF / AF / CAF


• Brightness / Contrast / Saturation / Sharpness

Image Config

• Rec.709 / Z-Log2 / FLAT / HLG

Audio

• Audio In / Audio Out Level

Time Code

• Current Time / Manual Input

Storage Media

• CFAST 2.0

File System

• exFAT

HDMI

• HDMI 2.0 Type-A (video output up to DCI 4K @60fps, 10-bit 4:2:2)

USB

• USB 3.0 Type-C for camera control & data transfer only

COM

• 2 x Serial Port

Remote Control

• 2.5 mm jack socket (Sony LANC compatible)

Audio-in

• 3.5 mm stereo jack socket for active microphone only, or 5-pin LEMO port for dual-channel XLR microphone (requires additional XLR audio connector)

Audio-out

• 3.5 mm stereo jack socket

Wi-Fi

• 5G, 802.11n with external antenna port

Ethernet

• Gigabit Ethernet port for control, setting & live streaming

Battery

• Sony NP-F series compatible, 6.8V ~ 8.4V (Battery notincluded)

Power Input

• DC 6.8V ~ 16.8V (2-pin LEMO socket), with LEMO connector

Power Output (AUX)

• DC 12V (2-pin LEMO socket)

Material

• Aluminum Alloy

Weight

• 1090g (EF mount) / 1160g (PL mount) / 930g (MFT mount)

Dimensions (W x H x D)

• 91.20mm x 99.25mm x 122.25mm (EF mount)
• 91.20mm x 99.25mm x 133.35mm (PL mount)
• 91.20mm x 99.25mm x 95.60mm (MFT mount)

  (Above weight & dimensions without lens)

Storage Temperature

• -20 °C ~ 60 °C

Operation Temperature

• 0 °C ~ 40 °C
